Probe Body for the Optical Industry

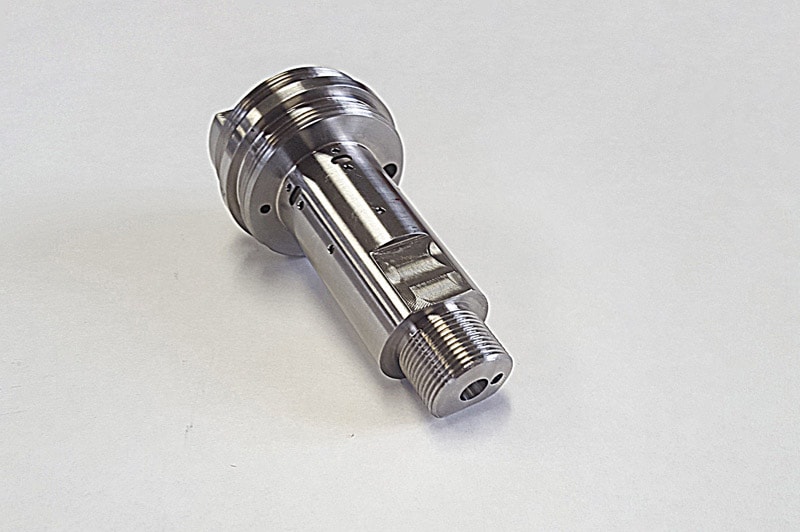

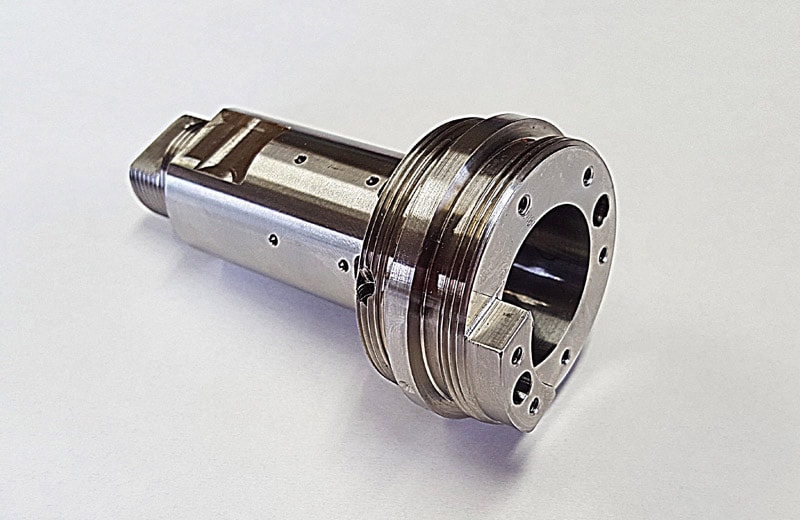

With precision CNC machining as one of our core capabilities, Advanced Industries Inc. has the technical proficiency to produce complex workpieces that require strict high tolerances. We manufactured the probe body highlighted here for use in an optical application. As a machine shop capable of highly accurate detail work within short timeframes, the client was confident in our capabilities to deliver ten workpieces in just two weeks.

Our shop is equipped with a large inventory of precision machine tool assets, each with a various features and benefits. With this range of equipment, we can target production towards a specific machine with the capabilities that align best with each individual component. The detailed complexity of this probe, combined with tolerance requirements as close as ±0.0001”, made our 8-axis lathe the most practical choice. Using this piece of high-end equipment, we were able to create the sharply detailed geometries from a single setup. Being able to machine the workpiece in a single operation allowed us to accelerate production, minimize handling, and keep costs low.

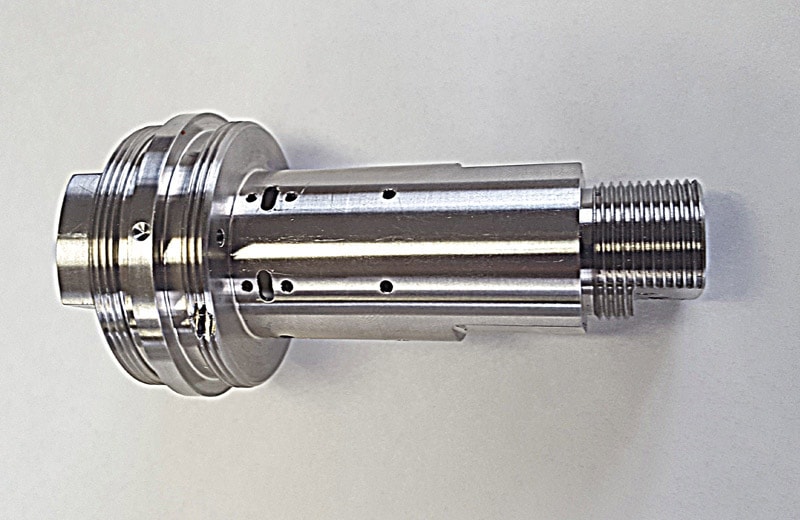

Constructed from 316 stainless steel, the probe body featured overall dimensions of 1.875” in diameter x 3.420” in length. We passivated the finished pieces per ASTM A380 to provide maximum protection from rust and corrosion. Quality inspections, in the lab and right on the shop floor, took place continuously throughout the production cycle. We used a variety of gauges and measuring equipment to ensure we satisfied the requirements of the client’s specifications.

To learn more about this project or our precision machining capabilities, contact us today.

Request for Quote

PROBE BODY SPECIFICATIONS

Equipment Used to Manufacture Part

Okuma LT 300MY CNC (8 axis)

Overall Part Dimensions

1.875 Dia. x 3.420” Long

Tightest Tolerances

±.0001

Material Used

316 Stainless Steel

Material Finish

PASSIVATE PER ASTM A380

Industry for Use

Optical

In Process Testing / Inspection Performed

First Piece, In Process and Final Inspection. Gages Used: Calipers, Micrometers, Groove Mics, Intra-Mics, Depth Mics, Zeiss CMM, Height Gage, Thread Ring Gages, Thread Plug Gages, Gage Pins, Optical Comparator.

Volume

10 pcs.

Delivery / Turnaround Time

2 weeks

Standards Met

AS9100D and ISOAS9100D and ISO 9001:2015
